Built from the inside out.
A custom speaker wall where structure, acoustics, and finish are engineered to work together. Scroll to take it apart, component by component.
Design & Engineering
We model the wall from the submittal, laying out every bay, baffle, and horn throat and engineering the case to carry real speaker loads.
Precision Fabrication
Cut and finished in-house in WD-06 grain-matched veneer with a lacquer finish, with the baffles, display shelves, and equipment bays built to house the audio array exactly.
Professional Installation
Set on site as four bays, scribed to the wall and leveled so the veneer and reveals read as one continuous piece.
Precision-engineered millwork, designed around both sound performance and architectural intent.

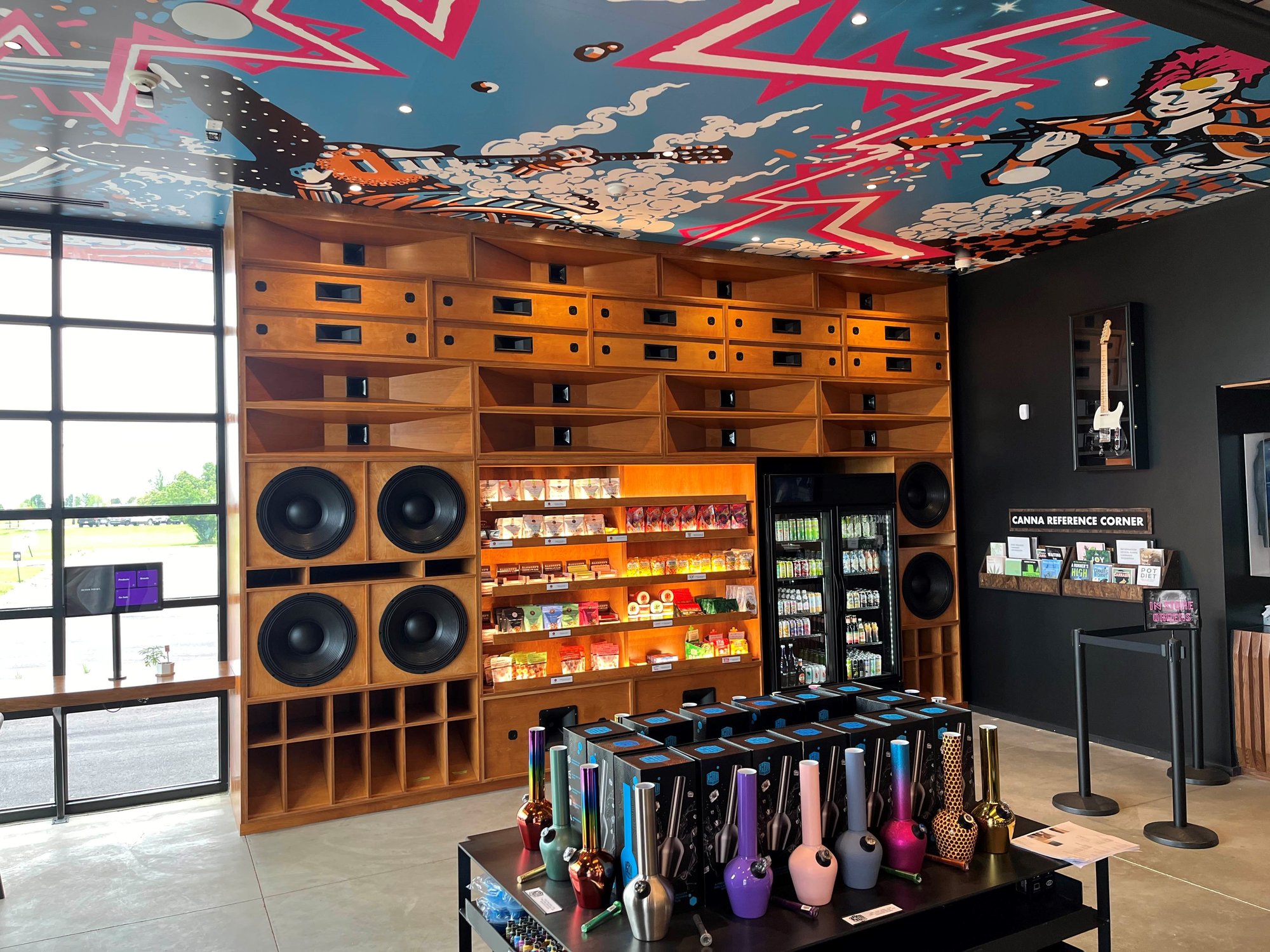

A 216¼″ × 138¼″ wall (verify in field) of four equal 54-1/16″ display bays in WD-06 grain-matched veneer with a lacquer finish, built over a 24″ case and a 12″ rear blocking zone — 36″ overall — for the Checkout room at Seven Point Danville. The face houses an integrated speaker array; amplifiers and controls are by others, run to a low-voltage wire chase in the casework. Built to AWI Custom Grade.
- 01Overall size216¼″ × 138¼″, ± verify in field
- 02Four display baysEqual bays at 54-1/16″ across the face
- 0336″ overall depth24″ case with a 12″ rear blocking zone
- 04WD-06 grain-matched veneerLacquer finish, formaldehyde-free control sample
- 05Bass speaker (A)B&C 21SW115, set into the baffle cutouts
- 06Pro tweeter (B)JBL Control 1 Pro, flanking the driver rows
- 07CD & exponential horns (C, D)B&C ME90 1.4″ and ME45 1″ aluminum horns
- 08Directivity horn (E)Goldwood GM-500PB across the upper bands
- 09Low-voltage wire chaseRouted through the casework to the equipment bays
- 10Amplifiers & controlsEquipment by others, in dedicated bays
